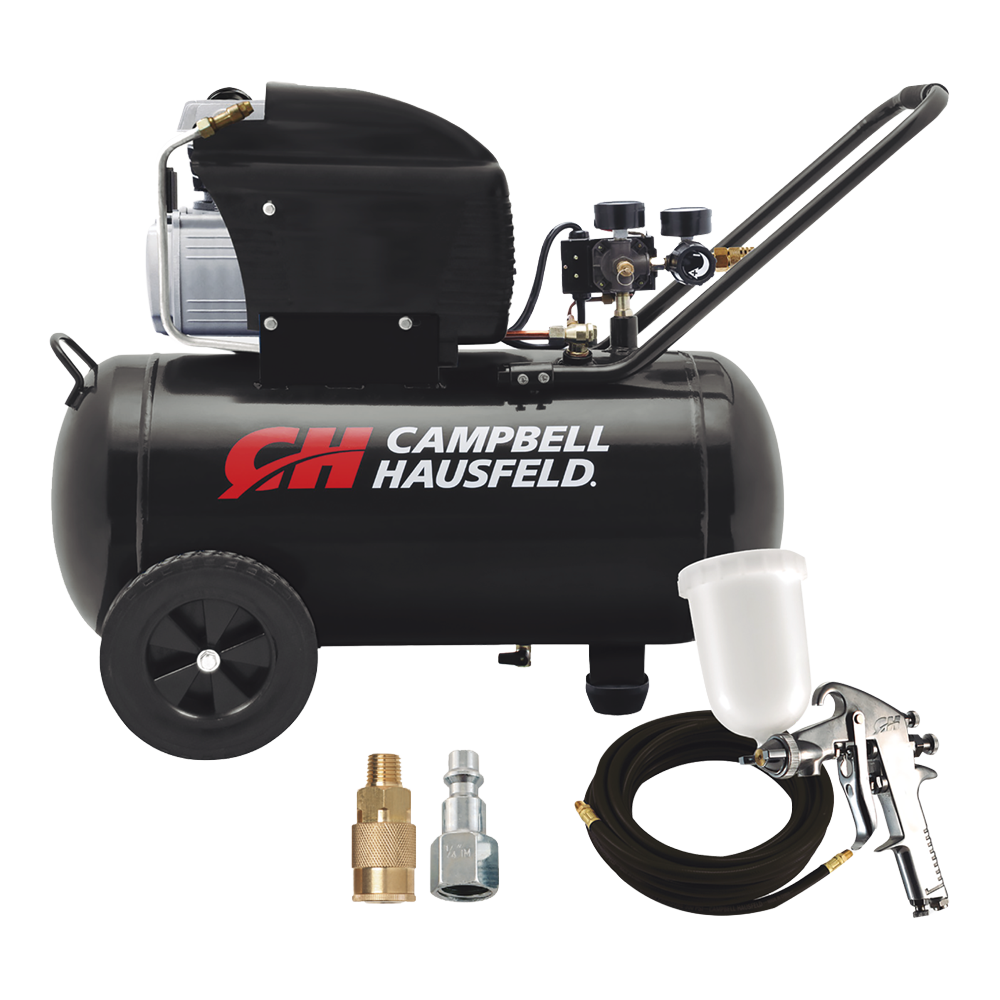

The Campbell Hausfeld, 50L air compressor is ideal for the home garage or workshop. The DX500120DI is designed for longevity with a long lasting, oil-lubed pump and ideal for most automotive, furniture, and equipment painting. The cast iron oil-lube pump is designed for durability and long lasting reliable performance. With a 2 HP motor, this unit is designed for high quality performance. This air compressor has a 0,09 CMM @ 6.2 BAR and a Max 8,6 BAR.
Product Highlights
- LATIN AMERICA ONLY
- Portability: Includes a convenient handle and wheels for increased mobility.
- Horizontal Orientation: Designed to be easily stored underneath a workbench.
Where to Buy
Choose from our trusted online retailer partners:
Browse All Retailers
*Availability varies by store.
Product Overview
Specifications
| Air Compressor | |
| Tank Capacity L(Gal) | 50 Liters (13.2 Gallon) |
| Compressor Horsepower | 3.7 HP |
| MAX Pressure Bar (PSI) | 8.6 (125) |
| Motor KW(HP) | 1.5 (2) |
| Compressor Amps | 6 |
| Compressor Voltage | 220 |
| Frequency HZ | 60 |
| Phase | Single Stage |
| Lubrication | Oil Lubricated |
| Cubic Meter Minute (CFM) @2.75BAR(40PSI) | 0.13 (4.6) |
| Cubic Meter Minute (CFM) @6.21BAR(90PSI) | 0.09 (3.2) |
| Cubic Meter Minute (CFM) @8.27BAR(120PSI) | 0.07 (2.5) |
| Compressor Tank Style | Horizontal, Portable |
| Tank Outlet Size | 1/4 in NPT |
| Unit Weight KG (lb) | 33kg (72.6 lbs.) |
| Net Weight KG (lb) W/accessories | 34.1kg (75 lbs.) |
| Unit Size Cm (LXWXH) | L 74.7 cm x W 31.7 cm x H 63.7 cm |
| Unit Size Inches (LXWXH) | L 29.4 in. x W 12.5 in. x H 25 in. |
| Gross Weight KG (lb) | 36.3kg (79.9 lbs.) |
| Carton Length Cm (in) (LXWXH) | L 76 cm x W 33 cm x H 65 cm (L 29.9 in. x W 13 in. x H 25.6 in.) |
| General | |
| Portable | Yes |
| Prop 65 | Yes |
| Power Source | Electric |
| UPC | 045564644536 |
| Distribution | Online Only |
| Regional Availability | Latin America |
Note: Specifications are subject to change
Warranty Information
| Warranty | 1 Year Limited Warranty |
See the product in action and learn how it delivers reliable performance for your toughest jobs.
Watch the video to explore key features and real-world applications.
