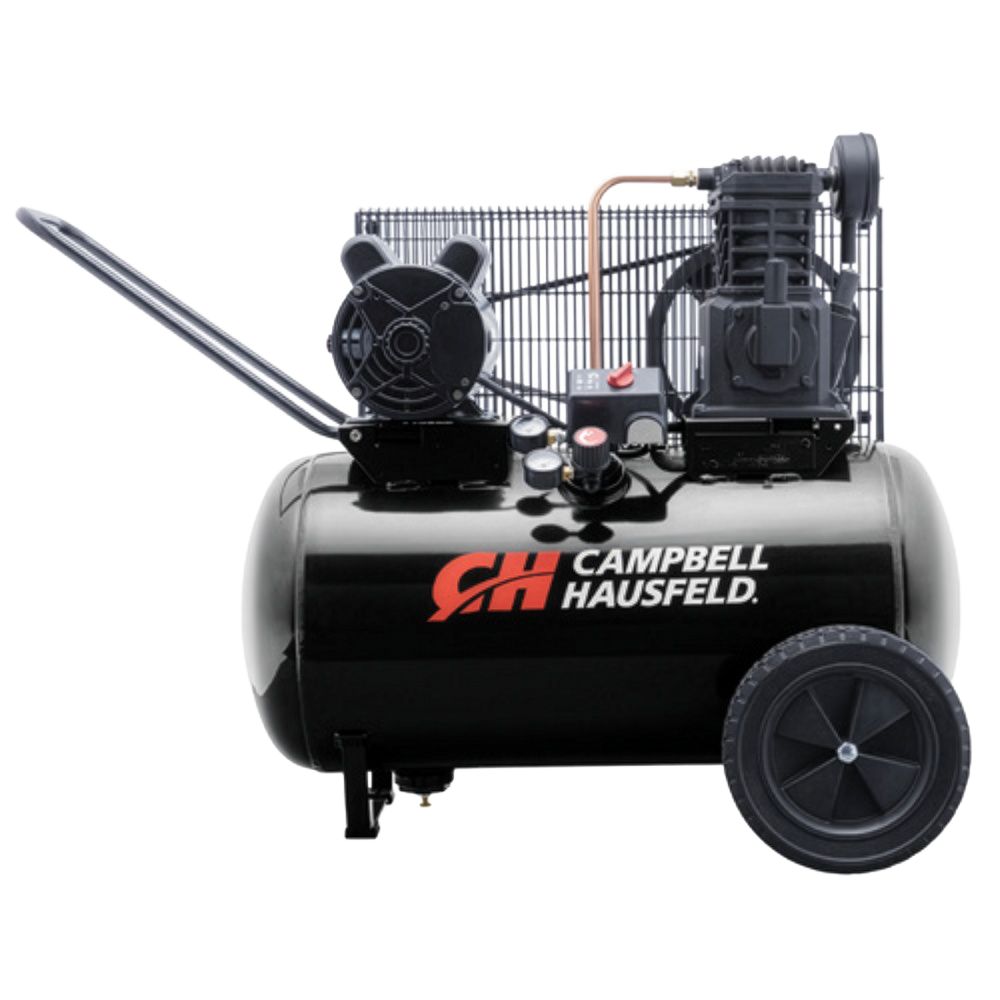

The Campbell Hausfeld 20 Gallon, 3.7 HP horizontal portable air compressor (VT6182) powers a variety of air tools for the serious do-it-yourselfer, professional, or contractor. Product life up to 5,000* hours. The large, semi-pneumatic wheels make this unit easy to move from one job to the next. Designed for quiet operation, the heavy-duty, cast-iron, two-cylinder pump is oil lubricated for a long life and delivers up to 10.2 CFM at 90 PSI.
*based on B-10 bearing rating
| Air Compressor | |
| Compressor Horsepower | 3.7 HP |
| Compressor Tank (Gallons) | 20 Gallon |
| Compressor Tank Style | Horizontal, Portable |
| Compressor CFM@90PSI | 10.2 CFM |
| Compressor CFM@135PSI | 9.8 CFM |
| Compressor Max PSI | 135 |
| Compressor Voltage | 240V |
| Compressor Amperage | 15/7.5A |
| Compressor Phase | 1 |
| Pump Type | Single Stage |
| Compressor Wheel | Semi-pneumatic wheels |
| Lubrication | Oil-lubricated |
| General | |
| Commercial | Yes |
| UL Safety Listing | Yes |
| CSA Safety Listing | Yes |
| ETL Safety Listing | No |
| Prop 65 | Yes |
| Portable | Yes |
| UPC | 045564101350 |
| Power Source | Electric |
| Weight | 165 lbs. |
| Carton Size | L 37 in. x W 21 in. x H 31 in. |
| Distribution | In Store & Online |
| Regional Availability | United States |
Note: Specifications are subject to change
| Warranty | 1 Year Limited Warranty |
See the product in action and learn how it delivers reliable performance for your toughest jobs.
Watch the video to explore key features and real-world applications.
