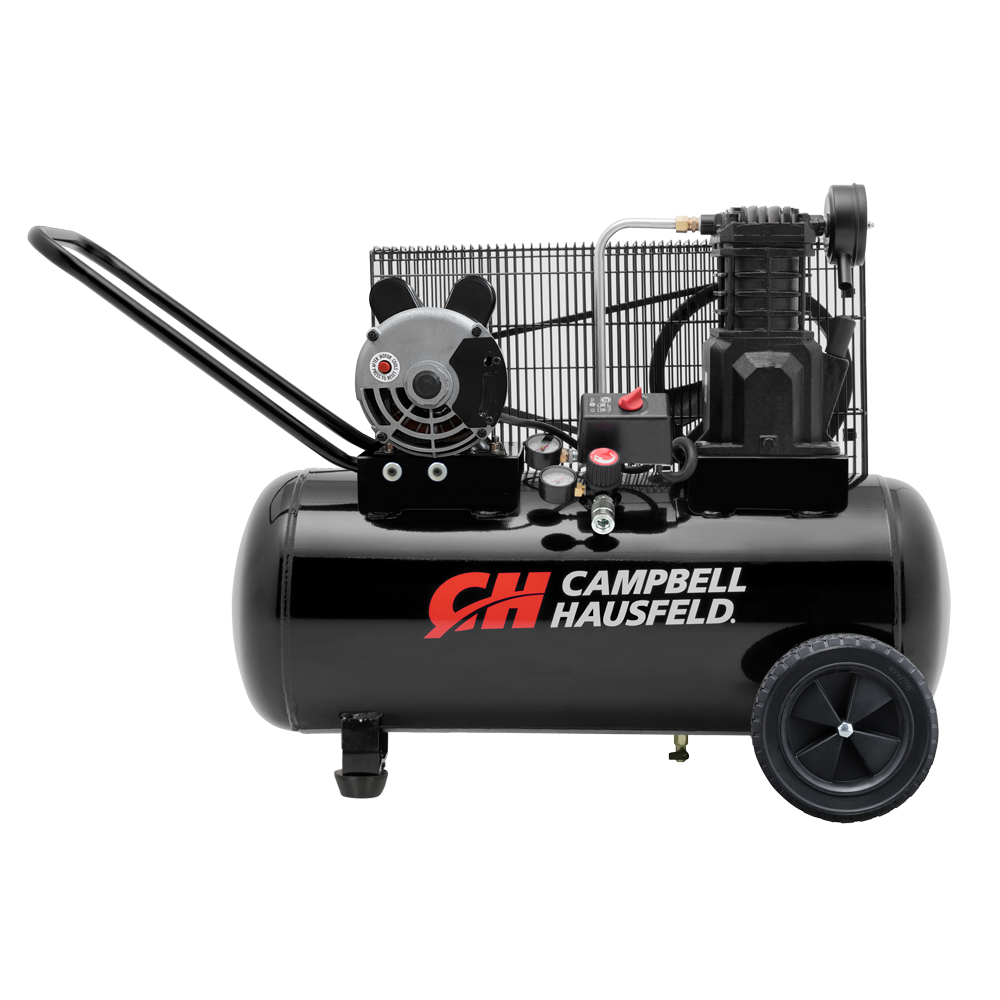

The new Campbell Hausfeld (IX800020) oil-lubricated, belt-driven air compressor is designed to be a highly versatile tool. With a maximum pressure of 125 PSI, this unit can power a variety of pneumatic tools. The semi-pneumatic wheels allow for easy maneuverability. Built for heavy-duty work, it features a cast iron, oil-lubricated head, resulting in quieter operation compared to a direct-drive compressor, and simpler mechanical maintenance.
Product Highlights
- LATIN AMERICA ONLY
- 80 L, 135 Max PSI
- 2 HP, 220V, 60 Hz
Where to Buy
Choose from our trusted online retailer partners:
Browse All Retailers
*Availability varies by store.
Product Overview
Specifications
| Air Compressor | |
| Tank Capacity | 21.1 Gal (80 L) |
| Compressor Tank Style | Horizontal, Portable |
| Maximum Pressure | 125 Max PSI (8.6 bar) |
| Motor (HP) | 2.0 |
| Amperage (A) | 6 |
| Voltage (V) | 220 |
| Frequency (Hz) | 50 |
| Phase | Single Stage |
| Lubrication | Oil-Lubricated |
| Cubic Meter Minute (CFM) @2.75BAR (40PSI) | 0.43 (6.3) |
| Cubic Meter Minute (CFM) @6.21BAR (90PSI) | 0.34 (5.0) |
| Tank Outlet | 1/4 in NPT |
| Unit Weight | 135.4 lbs. |
| Dimensions (Inches) | 35.4 x 14.9 x 31.1 in (90 x 38 x 79 cm) |
| General | |
| Commercial | Yes |
| Power Source | Electric |
| Distribution | Online Only |
| Regional Availability | Latin America |
Note: Specifications are subject to change
Warranty Information
| Warranty | 1 Year Limited Warranty |
See the product in action and learn how it delivers reliable performance for your toughest jobs.
