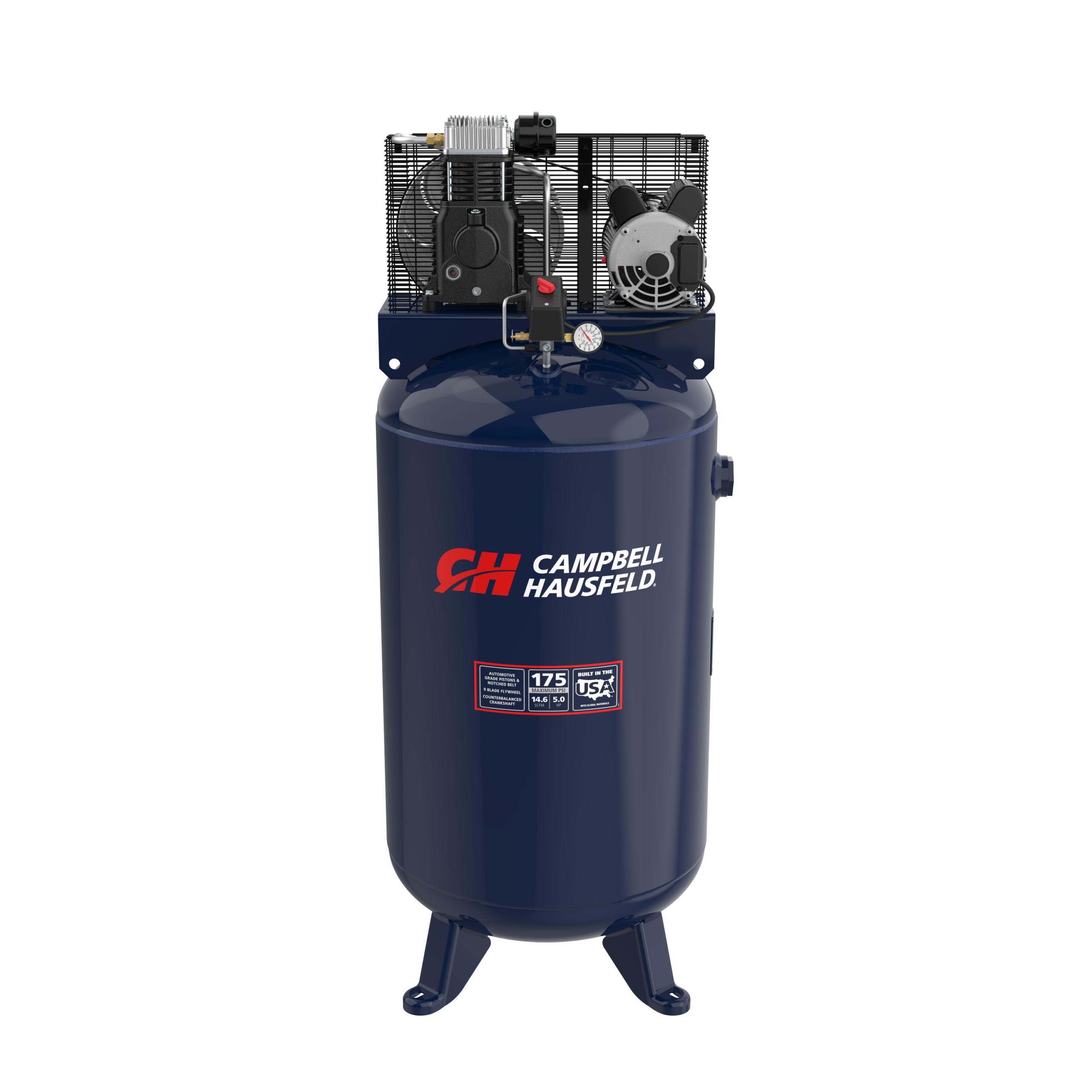

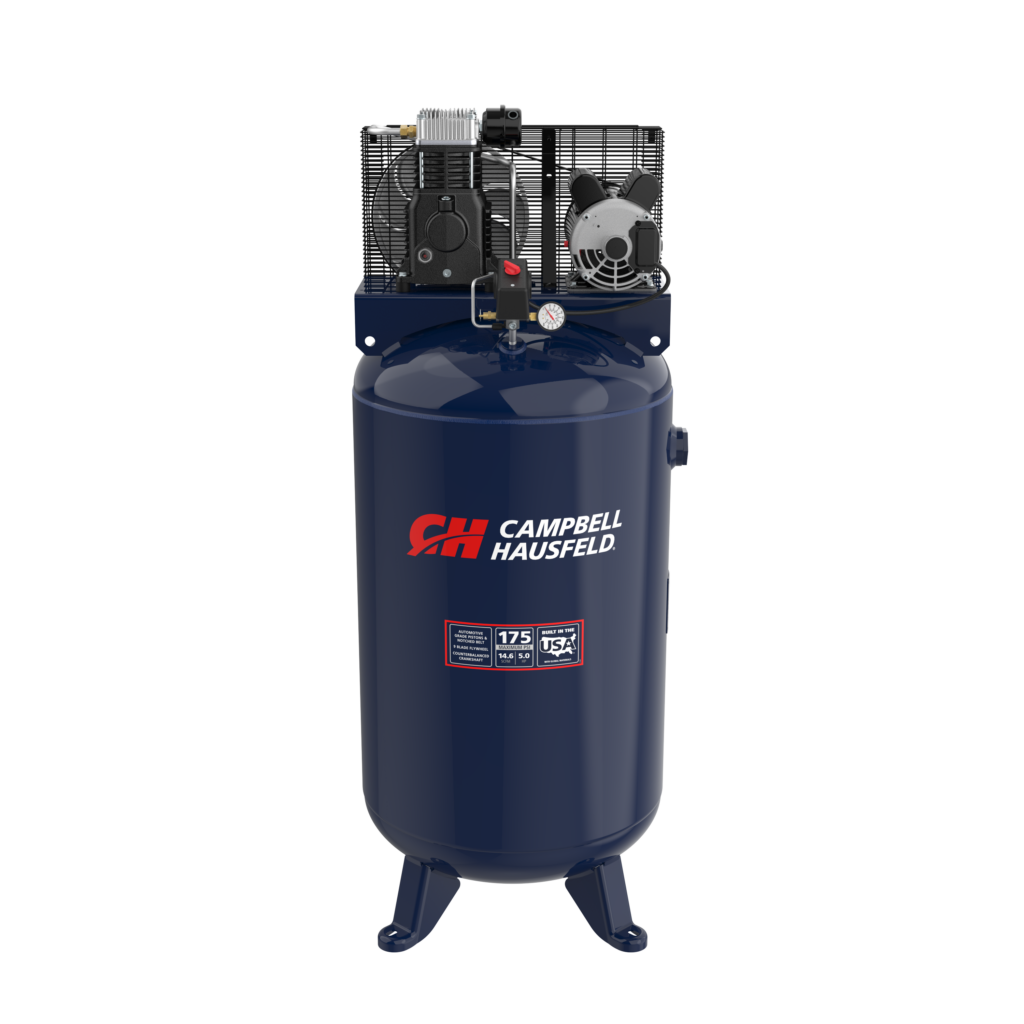

This Campbell Hausfeld, high-flow stationary electric air compressor (C8050) features a cast iron, twin-cylinder, oil-lubricated pump. The pump delivers 14.6 SCFM at 90 PSI with high-grade stainless steel valves, superior O-ring seals, and max heat-dissipating aluminum head and valve plate. The high efficiency aluminum flywheel provides maximum air flow while the poly-v drive system provides smooth operation with less vibration. The max 175 PSI coupled with 80 gallon tank size allows for longer air tool run times. With its durable and powerful design plus a space saving footprint, this compressor will help with all of your garage and workshop needs. Built in the U.S.A.
80 Gallon High Flow Air Compressor
Model# C8050
Product Highlights
- 80 Gallon Vertical Tank 175 Max PSI
- Horsepower 5 HP
- Amperage 20A
Where to Buy
Industry-Leading Prices. Selection from World-Class Retailers.
Where to BuyProduct Overview
Specifications
| Air Compressor | |
| Compressor Tank (Gallons) | 80 |
| Compressor Horsepower | 5 HP |
| Compressor Tank Style | Vertical |
| Compressor SCFM@40PSI | 17 |
| Compressor SCFM@90PSI | 14.6 |
| Compressor Voltage | 230V |
| Compressor Amps | 20 A |
| Compressor Phase | 1 |
| Pump Type | Single Stage |
| Lubrication | Oil Lube |
| Max PSI | 175 |
| General | |
| Commercial | Yes |
| Prop 65 | Yes |
| Power Source | Electric |
| Unit Weight | 272 lbs. |
| Unit Size | 25.5 in X 24.25 in X 63 in |
| Carton Size | 36.5 in X 31.25 in X 69 in |
| UPC | 045564660413 |
Note: Specifications are subject to change
Warranty Information
| Warranty | 1 Year Limited Warranty |
See the product in action and learn how it delivers reliable performance for your toughest jobs.
Watch the video to explore key features and real-world applications.
