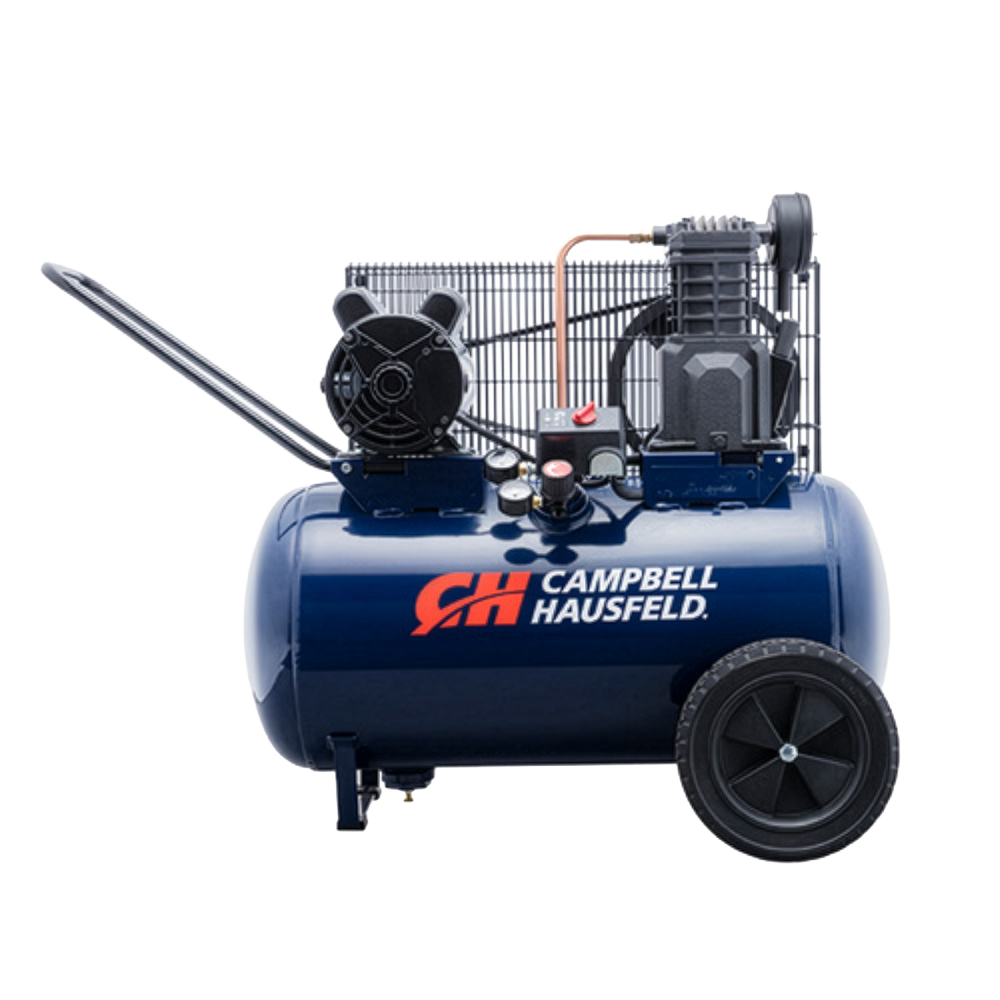

The Campbell Hausfeld 20 Gallon 2HP air compressor (VT6290) is designed for the serious DIY’er, professional, or contractor. Product life up to 5,000 hours (based on B-10 bearing life). Durable and safe ASME code tank for greater storage. The cast iron pump is designed for long life and durability. The large semi-pneumatic wheels make this unit easy to move from one job to the next. 5.5 average SCFM at 90 PSI.
Product Highlights
- Heavy Duty Cast Iron, Oil-Lubricated, Two Cylinder Single Stage Pump
- Handle and semi-pneumatic wheels for portability
- Fully enclosed metal belt guard for safe operation
Where to Buy
Choose from our trusted online retailer partners:
Browse All Retailers
*Availability varies by store.
Product Overview
Specifications
| Air Compressor | |
| Compressor Horsepower | 2 HP |
| Compressor Tank (Gallons) | 20 Gallon |
| Compressor Tank Style | Horizontal, Portable |
| Max PSI | 135 |
| Compressor CFM | 5.5 @ 90 PSI |
| Compressor Voltage | 120/240V |
| Compressor Amps | 15/7.5 A |
| Compressor Phase | 1PH |
| Pump Type | Single Stage |
| Compressor Wheel | Semi-pneumatic wheels |
| Lubrication | Oil-lubricated |
| Decibel Rating (Outdoor) | 85 dBA |
| General | |
| Commercial | No |
| Prop 65 | Yes |
| Portable | Yes |
| UPC | 045564104818 |
| Power Source | Electric |
| Carton Size | L 37 in. x W 21 in. x H 30.5 in. |
| Weight | 148 lbs. |
| Distribution | In Store & Online |
| Regional Availability | United States |
Note: Specifications are subject to change
Warranty Information
| Warranty | 1 Year Limited Warranty |
