Combination Unit, 30-Gallon Compressor, Generator and Welder
Product Highlights
- 120V and 240V Electrical Outlets
- Two Stage Cast Iron Air Compressor for high output and industrial reliability
- Heavy Duty 14 gauge steel belt guard
Where to Buy
Choose from our trusted online retailer partners:
*Availability varies by store.
Product Overview

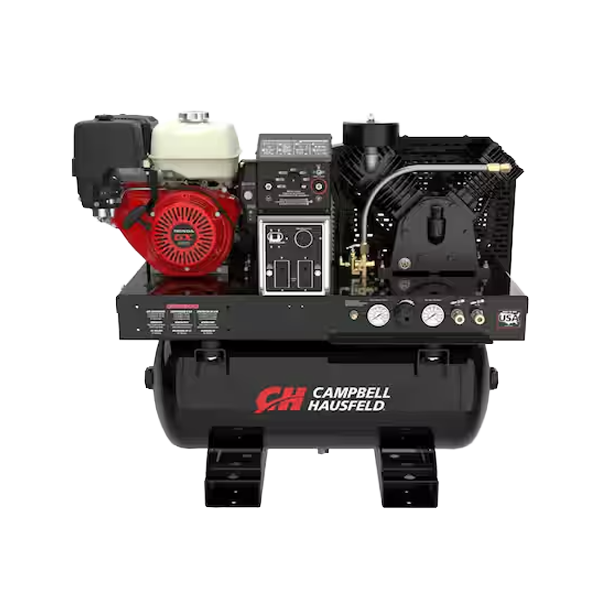

The Campbell Hausfeld 3-in-1 air compressor/generator/welder (GR3200) is ideal for jobsites and work trucks. Designed for high output and industrial reliability, its two-stage, cast-iron air compressor fills a 30-gallon air tank and delivers 14 CFM of airflow at 90 PSI to drive a wide variety of air tools. A robust generator provides 5,000 continuous watts of 120V and 240V AC power to operate most electric tools and lights. And a DC Stick welder delivers a maximum 180 amps of power to weld up to 1/2-inch thick steel. Powering it all is a Honda GX-390 engine that’s engineered to deliver a long operating life of economical, reliable performance. Built with safety in mind, this air compressor/generator has a control panel that’s UL certified and OSHA compliant; the electrical outlets are GFCI protected. A heavy-duty, 14-gauge steel belt guard is securely bolted to the unit, but can be quickly removed to provide access to routine maintenance items.
Specifications
| Air Compressor | |
| Pump Type | Two Stage |
| Power Type | Gas |
| Max PSI | 175 |
| Compressor Engine Company | Honda |
| Engine Model Number | GX390 |
| Decibel Rating (Outdoor) | 92 dBA |
| Compressor Horsepower | 13 |
| Compressor Tank (Gallons) | 30 |
| Compressor Tank Style | Horizontal |
| Compressor SCFM@40PSI | 15.2 |
| Compressor SCFM@90PSI | 14 |
| Maximum Pressure (PSI) | 175 |
| Generator | |
| Generator Watts | 5000 Continuous |
| Generator Alternator | 2 Pole Brushless |
| Output Voltage(s) (AC) | 115V / 230V |
| Signal Frequency (Hz) | 60 |
| Welder | |
| Welder Volt In | N/A |
| Welder Type | Stick |
| Welder Electrode Diameter | 0.06" (1.5mm) to 0.25" (6.4mm) |
| Welder Duty Cycle | 100%@150A 65%@180A |
| Welder Max Amp Output | 200 Amp DC |
| Welder Output Range amps | 50 - 180 Amps DC |
| Max Welding Material Thickness | 19 Ga. (0.041") to 3/8" (0.375") steel |
| General | |
| Commercial | No |
| Portable | No |
| Prop 65 | Yes |
| Depth | 49 in |
| Height | 48 in |
| Width | 30 in |
| Shipping Dimensions Width | 30 |
| Shipping Dimensions Height | 48 |
| Cube FT | 41.5 |
| Shipping Dimensions Length | 49.8 |
| UPC | 045564637637 |
| Power Source | Gas Engine |
| Weight | 591 |
Note: Specifications are subject to change
Warranty Information
| Warranty | 3 Year Limited Warranty |
