Main Farm Duty 1/4 MFD48Z0251P4P-CH
Main Farm Duty 1/4 MFD48Z0251P4P-CH

Farm Duty Electric Motor, 1/4 HP

Model# MFD48Z0251P4P-CH
Be the first to review

* Aggregated data from campbellhausfeld.com

Product Highlights

  • 0.25 HP, 1725 RPM, 115/230 Volts
  • 3.2/1.6 Amps, 60 Hz
  • 0.409" square shaft, 48Z NEMA Frame
View more details about this product
Where to Buy

Choose from our trusted online retailer partners:

Tractor Supply Co Shop Now
Browse All Retailers

*Availability varies by store.

Product Overview

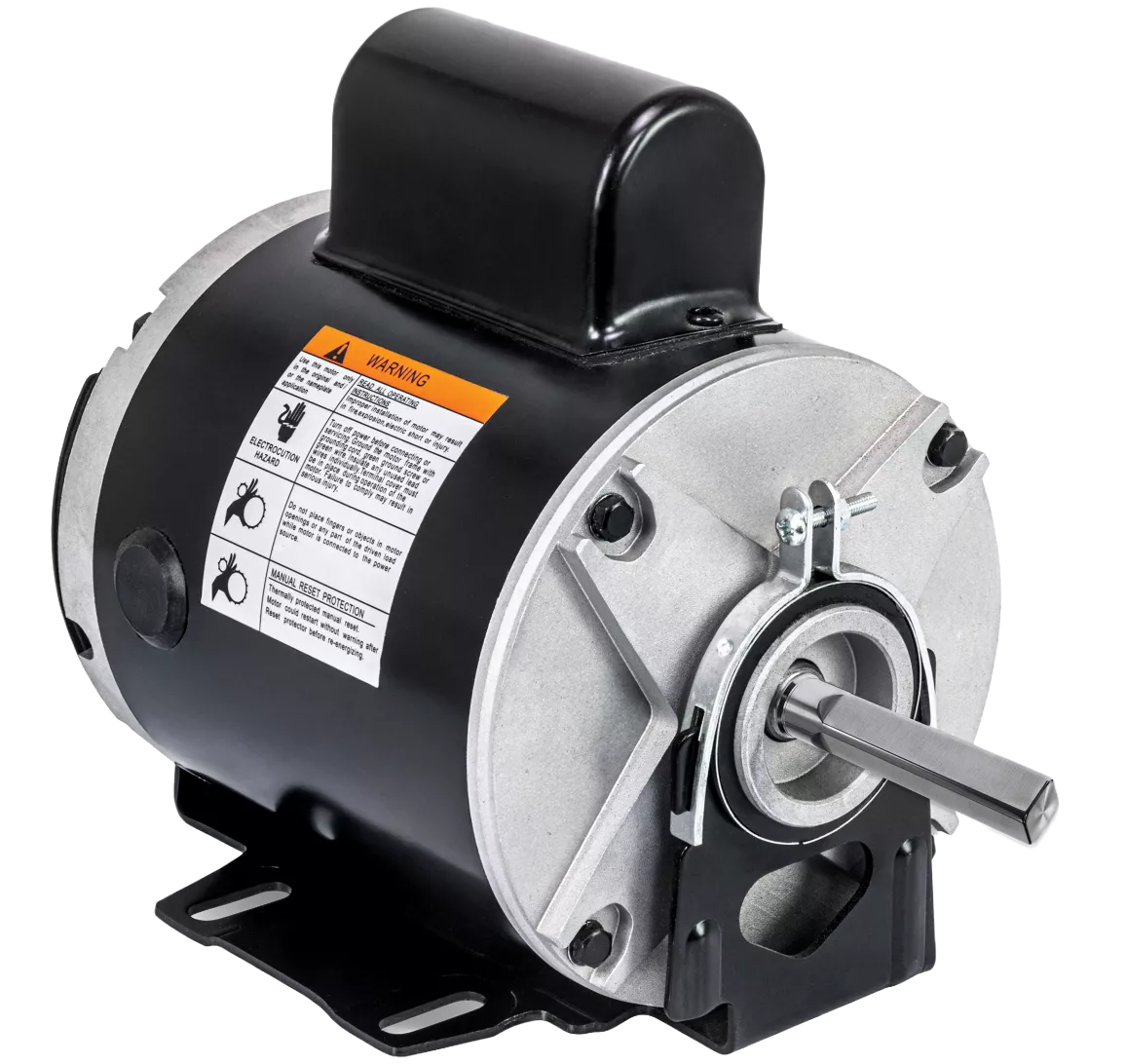

The Campbell Hausfeld 0.25 HP Farm/Heavy Duty Motor is the perfect electric motor to use fans and blowers. The motor is 4-Pole providing more starting torque. It features a permanent split capacitor (PSC) which improves efficiency and runs smoothly. The TEAO housing coupled with its durable steel frame and shell help make this motor suitable for use in fans and blowers. With other features like reversible rotation and automatic overload protection, the Campbell Hausfeld 0.25 HP Farm/Heavy Duty Motor is made to provide dependable power to your job.

Manuals & Downloads

Specifications
Electric Motor
CompatibilityNONE
Hertz60 Hz
Amperage3.2 -1.6 A
Minimum RPM1,725 rpm
Maximum RPM1,725 rpm
Frame Type48
PhaseSingle
Mounting TypeBracket
Primary MaterialSteel
Primary Height7.81 in.
Primary Length10.1 in.
Product Width5.7 in.
Primary Weight12.35 lb.
Rotation DirectionReverse
Shank Diameter2.19 in.
Stage TypeSingle-Stage
Voltage115-230 V
General
DistributionIn Store & Online
Regional AvailabilityUnited States

Note: Specifications are subject to change

Warranty Information
Warranty 1 Year Limited
