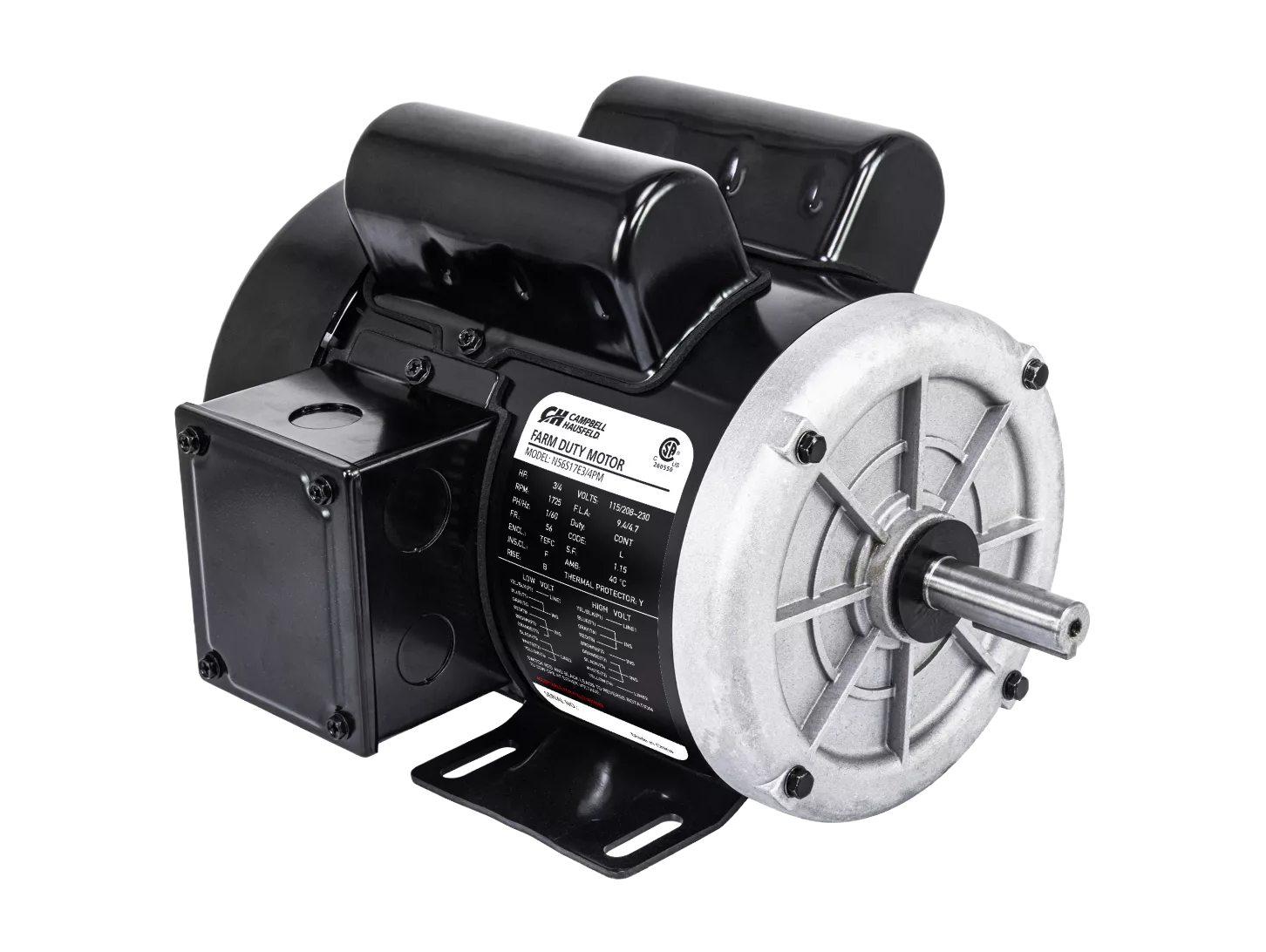

The Campbell Hausfeld 1.5 HP Farm/Heavy Duty Motor is the perfect electric motor to use in a wide range of applications requiring power and durability. This 4-Pole motor has higher starting torque and a dual capacitor design that provide effortless startups and easy on-off cycles. The TEFC housing coupled with its durable steel frame and shell help make this motor suitable for use in feeders, grain bins, heavy-duty fans, augers, air compressors, industrial tools, woodworking and fabrication shops, conveyors, pumps, and elevators. With other features like reversible rotation, vented cooling, and manual overload protection, the Campbell Hausfeld 1.5 HP Farm/Heavy Duty Motor is made to provide dependable power to your job. Dependable and CSA certified.
Product Highlights
- 1.5 HP, 1725 RPM, 115/208-230 Volts
- 14.6/7.3 Amps, 60 Hz
- 7/8" keyed shaft, 145T NEMA Frame
Where to Buy
Choose from our trusted online retailer partners:
*Availability varies by store.
Product Overview
Specifications
| Electric Motor | |
| Compatibility | NONE |
| Hertz | 60 Hz |
| Amperage | 14.6-7.3 A |
| Minimum RPM | 1,725 rpm |
| Maximum RPM | 1,725 rpm |
| Frame Type | 145T |
| Phase | Single |
| Mounting Type | Bracket |
| Primary Material | Steel |
| Primary Height | 8.5 in. |
| Primary Length | 13.1 in. |
| Product Width | 9.1 in. |
| Primary Weight | 38.8 lb. |
| Rotation Direction | Reverse |
| Shank Diameter | 0.875 in. |
| Stage Type | Single-Stage |
| Voltage | 115,208-230 V |
| General | |
| Distribution | In Store & Online |
| Regional Availability | United States |
Note: Specifications are subject to change
Warranty Information
| Warranty | 1 Year Limited |
See the product in action and learn how it delivers reliable performance for your toughest jobs.
Watch the video to explore key features and real-world applications.
No customer reviews yet.
-
