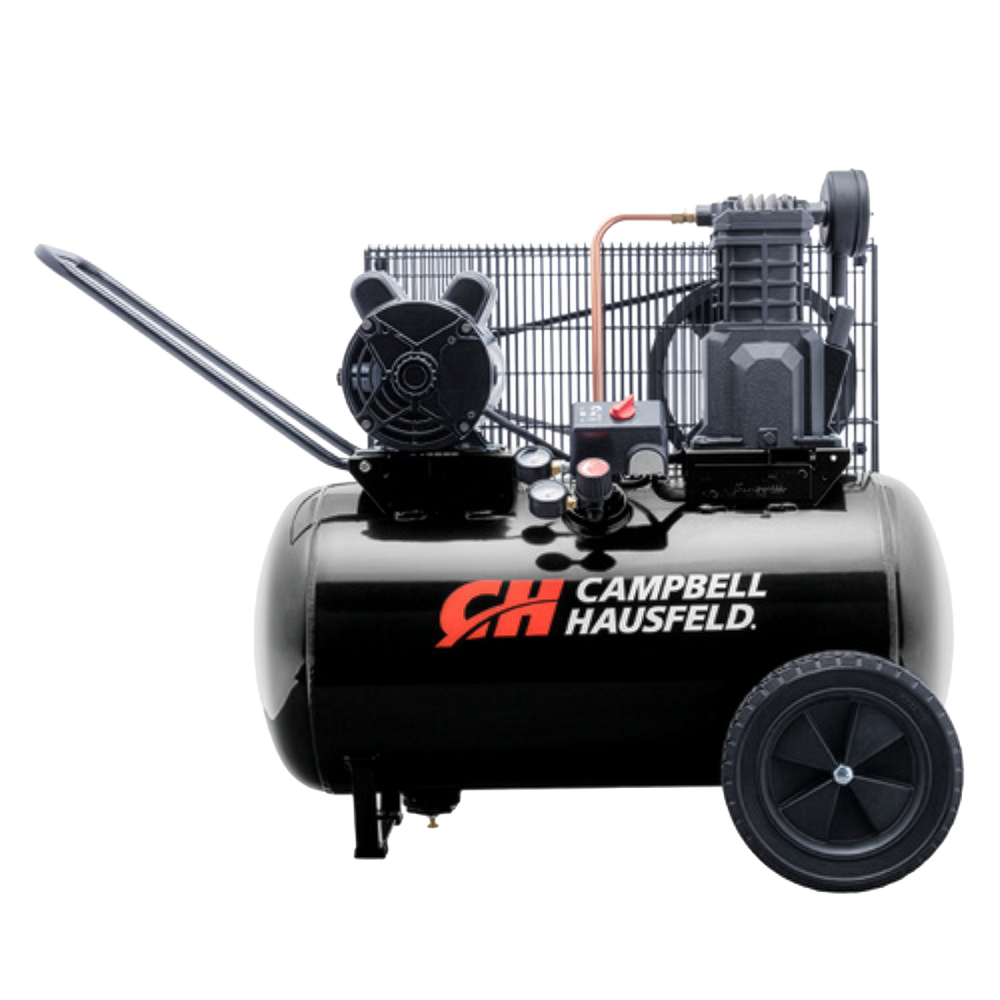

20 Gallon Air Compressor

Model# VT6183

* Aggregated data from campbellhausfeld.com

Product Highlights

  • Heavy Duty Cast Iron, Oil-Lubricated, Two Cylinder Single Stage Pump
  • Handle and semi-pneumatic wheels for portability
  • Fully enclosed metal belt guard for safe operation
Where to Buy

Choose from our trusted online retailer partners:

Browse All Retailers

*Availability varies by store.

Product Overview

The Campbell Hausfeld 20 Gallon, 2HP horizontal portable air compressor (VT6183) powers a variety of air tools for the serious do-it-yourselfer, professional, or contractor. This product will provide up to 5,000* hours of life. With a dual-voltage motor that can operate on either 120V or 240V current, this versatile air compressor can work in a variety of locations. The large semi-pneumatic wheels make this unit easy to move from one job to the next. The heavy-duty, cast-iron, two-cylinder pump is designed for quiet operation, is oil lubricated for a long life and delivers up to 5.5 CFM of air at 90 PSI.

*based on B-10 bearing rating

Specifications
Air Compressor
Compressor Tank (Gallons)20 Gallon
MAX PSI135
Compressor Horsepower2 HP
Compressor Tank StyleHorizontal, Portable
Compressor CFM@90PSI5.5 CFM
Compressor CFM@135PSI4.8 CFM
Compressor Voltage120/240V
Compressor Amperage15/7.5A
Compressor Phase1
Pump TypeSingle Stage
Compressor WheelSemi-pneumatic wheels
LubricationOil-lubricated
General
CommercialYes
UL Safety ListingYes
CSA Safety ListingYes
ETL Safety ListingNo
Prop 65Yes
PortableYes
Power SourceElectric
Weight148 lbs
Carton SizeL 37 in. x W 21 in. x H 31 in.
UPC045564101381
DistributionIn Store & Online
Regional AvailabilityCanada and United States

Note: Specifications are subject to change

Warranty Information
Warranty 1 Year Limited Warranty

See the product in action and learn how it delivers reliable performance for your toughest jobs.

Watch the video to explore key features and real-world applications.
